material PP PE cold-cutting type plastic granulating machine pelletizing plant

FOB Reference Price:Get Latest Price
US $25,000-60,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
10 Set/Sets per Month
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Granulating Production Line
Capacity:
80-120kg/h
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
FST pelletizing plant
Model Number:
Plastic Granulating Machine
Material:
PP/PE
Screw Design:
Single
Voltage:
Customer Standard
Power:
90KW
Dimension(L*W*H):
10000*1200*1500MM
Weight:
3000KG
Certification:
CE ISO9001
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Mainframe Model:
SJ-65
Granual(mm):
3*3
speed(r/min):
400-200
Max.output(kg/h):
80-120
cooling type:
wind delivery air-cooled
total power(kw):
47.37
Gross weight(kg):
3800
Overall size(m):
10*2.5*3
Factory location:
2 hours from shanghai
Keyword:
pelletizing plant
Packaging & Delivery
Packaging Details
Standard packing for material PP PE cold-cutting type plastic granulating machine pelletizing plant.
Delivery Time
25 working days
Product Description

Product Application

By a conical forced feed extruder, a single screw extruder, vacuum exhaust device, quick net changing device, cutting device and other components. The feeding section of the screw diameter increased. The compressor has a larger volume compression ratio. A vacuum pumping device two of the connection machine, can effectively remove volatile materials. Waste can be directly extruded products. Not only Recyclable ordinary PP, PE plastic, recover and foaming PS, PE, EVA and other products. According

to different materials, production, equipped with different diameter screw.

Special reducers for hard surface; 38CrALAO nitride material in screw; the use of vacuum exhaust, ensure no particle porosity; without stopping the exchanger; cooling water tank; drying fan; hob type granulator without any drying. At room temperature, granulation, forming a small investment,quick effect,good economic benefits.

material PP PE cold-cutting type plastic granulating machine pelletizing plant
                                         Model
                                                        Project
SL-Z-65-60
SJL-Z-90-100
SJL-Z-90-120
Mainframe model
SJ-65
SJ-90
SJ-120
Granual(mm)
3*3
Speed(r/min)

400-200
Max.output(kg/h)
80-120
150-300
200-450
Cooling type
Wind delivery air-cooled
Total power(kw)

47.37
59.5
106
Gross weight(kg)
3800
4000
4400
Overall size(m)
10*2.5*3
10*2.5*3
12*2.5*3

Main Features

This line is mainly used in cold bracing cutting granulation for PET bottle flakes, recycled PP/PE and other plastic.

1. High-precision pelletizing.

2. Efficientive cold-cutting.

3. Convenient to install and mobile.

Certifications
Detailed Images

Machine Parts

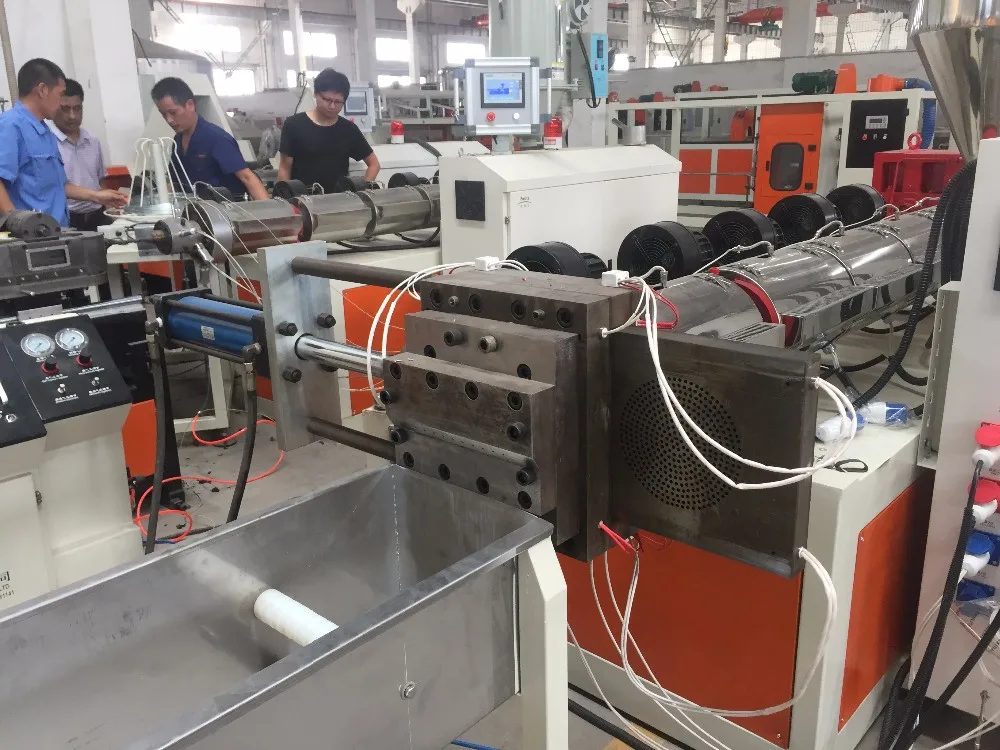

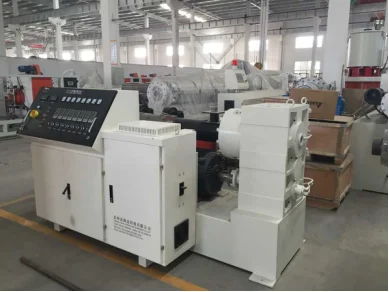

Name:Extruder

Main Features

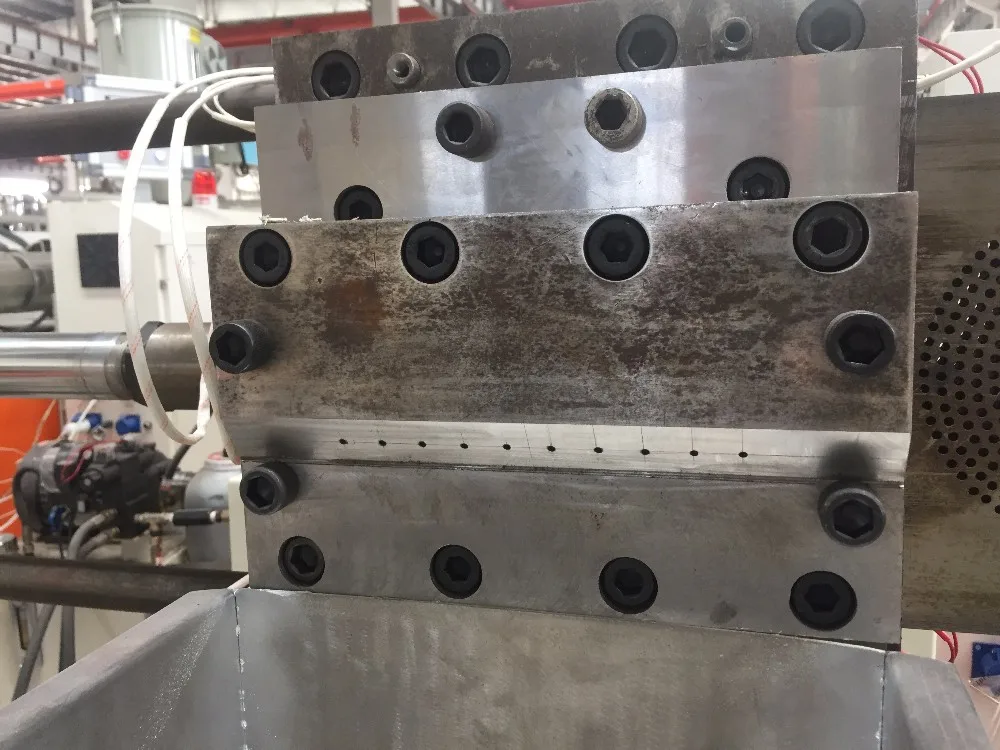

Name: Molds

Machine Parts

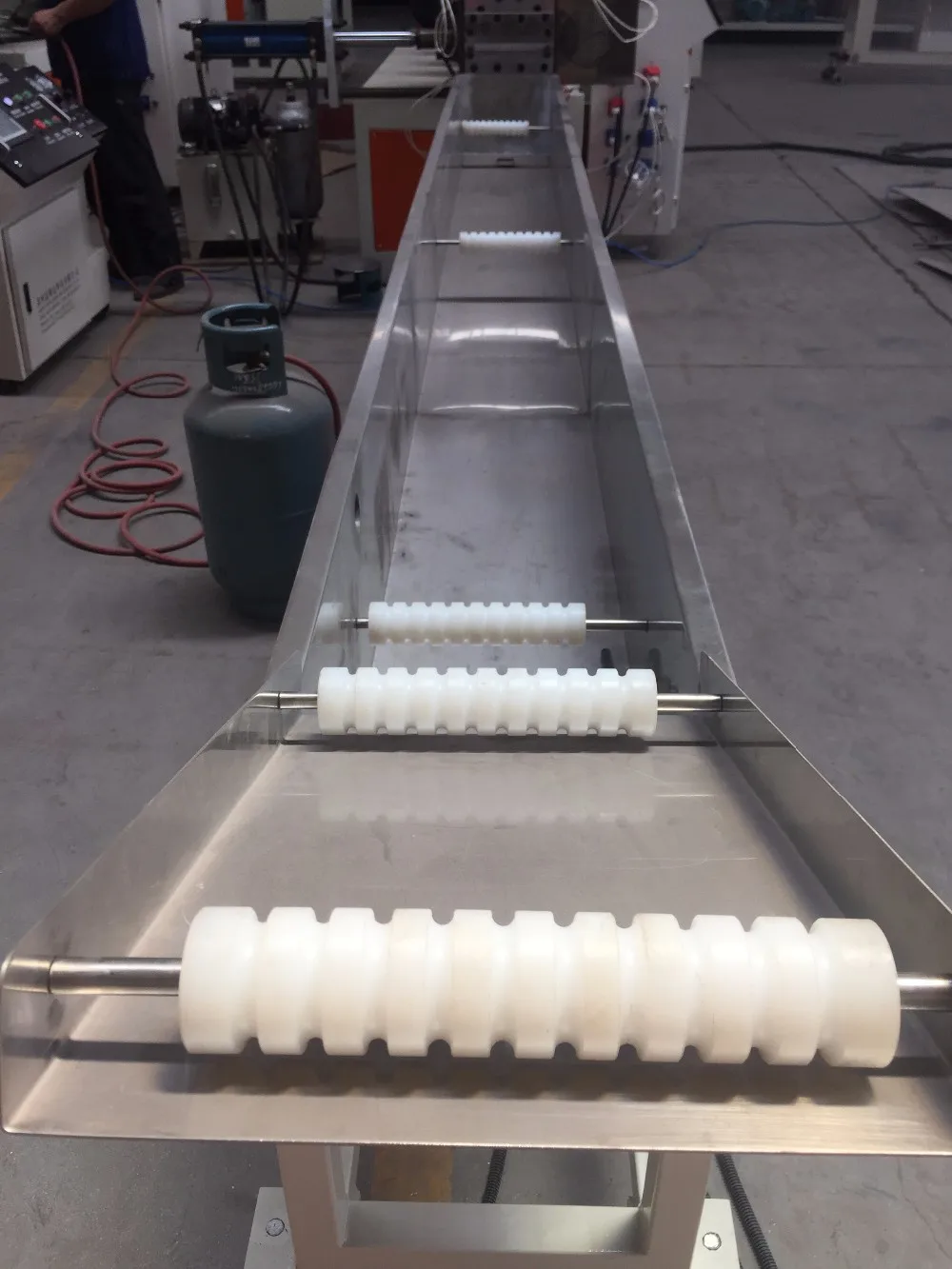

Name: Water tank

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
Standard packing
